Transaxle Fluid vs Transmission Fluid Guide

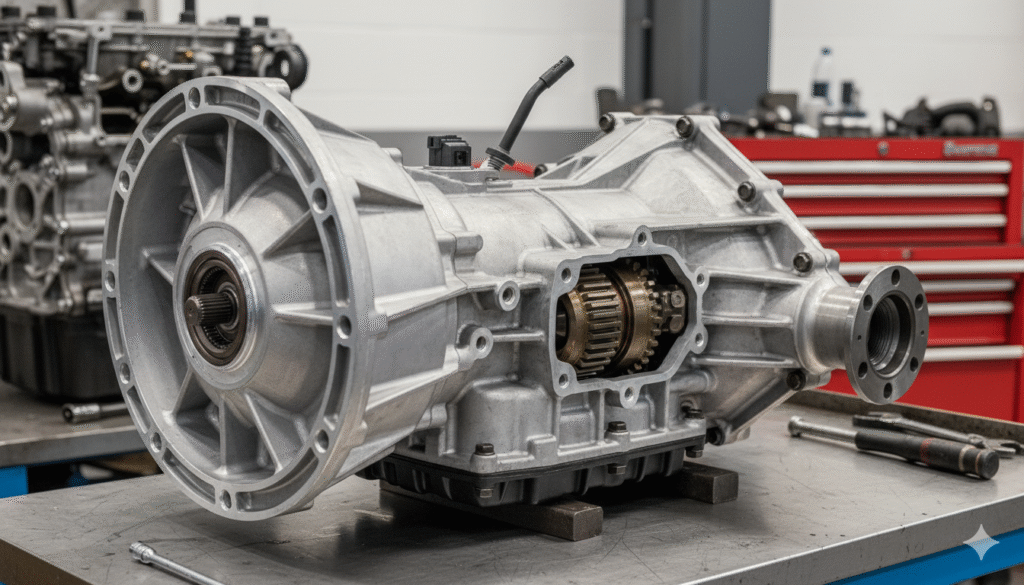

What Is a Transaxle?

A transaxle is a drivetrain component that combines the transmission and the differential into one integrated unit. Instead of having these systems housed separately, a transaxle allows a vehicle to manage gear shifting and power distribution through a single compact assembly.

How It Combines Transmission + Differential

• Transmission Function: Controls gear ratios and regulates how much power is sent from the engine to the wheels.
• Differential Function: Splits power between the left and right wheels, allowing them to rotate at different speeds during turns.

By merging these two components, a transaxle reduces weight, saves space, and simplifies the powertrain layout—especially beneficial in smaller vehicles.

Vehicles That Commonly Use Transaxles

Transaxles are typically found in:

• Front-Wheel Drive (FWD) Vehicles: The most common application, where the engine, transmission, and drive wheels are all located at the front.
• All-Wheel Drive (AWD) Vehicles: Many AWD systems are built on a FWD platform, making a front transaxle essential for power distribution.
• Selective Rear-Engine or Mid-Engine Sports Cars: Certain performance vehicles use transaxles for improved weight balance and handling.

Is a Transaxle the Same as a Transmission?

While the terms transaxle and transmission are often used interchangeably, they are not the same, even though they perform closely related functions.

Transmission vs. Transaxle Functionality

• Transmission:
  • Manages gear changes.
  • Sends power from the engine to the driveshaft (in RWD vehicles) or directly to the wheels (in some FWD designs).
• Transaxle:
  • Performs all transmission functions plus houses the differential in the same unit.
  • Distributes power between left and right wheels while managing gear ratios.

Why Both Terms Are Often Confused

In many modern vehicles—especially FWD—the transmission and differential are combined into one assembly. Because of this integration, people frequently refer to the entire unit simply as the “transmission,” even though technically it is a transaxle.

Key Differences in Design and Purpose

• Design:
  • Transmission = separate unit
  • Transaxle = combined transmission + differential
• Purpose:
  • Transmission focuses on gear shifting
  • Transaxle handles gear shifting and wheel power distribution
• Application:
  • Transmissions are common in RWD and trucks
  • Transaxles dominate FWD and many AWD vehicles

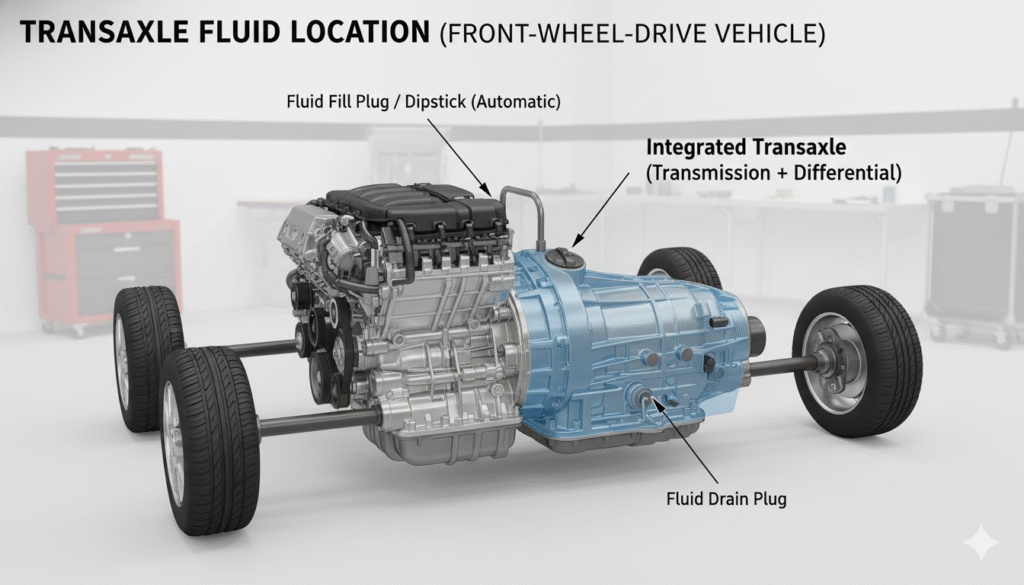

Where Is Transaxle Fluid Located?

Transaxle fluid is stored inside the transaxle unit, which is typically mounted at the front of the vehicle in front-wheel-drive (FWD) systems. Because the transaxle combines both the transmission and differential, the fluid lubricates and cools all internal components within this single housing.

Transaxle Fluid Location in FWD Vehicles

In most FWD cars, the transaxle is positioned directly beside or below the engine. The fluid is contained inside this casing and is not externally visible. Access points for checking or adding fluid depend on the vehicle design.

How to Identify the Transaxle Dipstick (If Present)

Some older or service-friendly vehicles include a transaxle/transmission dipstick. You may find it:

• Near the front or side of the engine bay
• Marked with labels like “ATF,” “TRANS,” or “TRANSAXLE”
• Colored for visibility (commonly red, yellow, or orange)

However, many modern vehicles use sealed transaxle systems and do not include dipsticks, requiring a different inspection method.

Checking Fluid Level Through a Fill Plug

If there is no dipstick, fluid levels are checked through the fill plug on the side of the transaxle housing. This process typically involves:

1. Lifting the vehicle safely
2. Locating the fill plug on the side of the unit
3. Removing the plug and checking whether fluid is level with the opening
4. Adding fluid only if the level is low

This method may require professional tools and is often best handled by a mechanic.

Signs of Low or Contaminated Transaxle Fluid

Watch for the following symptoms, which may indicate fluid that needs service or replacement:

• Hard or delayed shifting
• Whining, grinding, or clunking noises
• Slipping gears or inconsistent performance
• Visible leaks near the front of the vehicle
• Dark, burnt, or foul-smelling fluid

What Is Another Name for a Transaxle?

A transaxle may be referred to by several different names depending on the manufacturer, vehicle type, or regional terminology. All these terms describe the same component: a unit that combines the transmission and differential into one assembly.

Common Alternative Terms

• “Integrated Transmission” – Highlights that the gear system and differential are merged into one compact unit.
• “Transmission-Differential Unit” – A more technical term used to describe its dual functionality.

Some manufacturers may also simply call it a “transmission” in owner manuals, especially in FWD vehicles, even though the correct term is transaxle.

Why Manufacturers Use Different Names

Automakers often use varying terminology to simplify manuals, reduce confusion for consumers, or match brand-specific language. In some cases, the terms reflect slight design differences, but the core function remains the same.

Automotive Industry Terminology

In industry and repair settings, the word transaxle is consistently used to distinguish it from a standard transmission used in RWD or truck platforms. Service technicians use this term to ensure clarity when discussing fluid types, maintenance, or part replacement.

When to Replace Transaxle Fluid?

Transaxle fluid plays a crucial role in lubricating gears, cooling internal components, and ensuring smooth power transfer. Replacing it at the right intervals prevents wear, improves performance, and extends the life of your transaxle.

Recommended Replacement Intervals

Most manufacturers recommend changing transaxle fluid every 30,000 to 60,000 miles, depending on the vehicle type, driving conditions, and whether the system is sealed. Always consult your owner’s manual for the exact interval for your model.

Symptoms That Indicate a Fluid Change

Even if you haven’t reached the recommended mileage, the following signs suggest it’s time for a fluid service:

• Hard Shifting: Difficulty switching gears or delayed engagement may signal worn or dirty fluid.
• Grinding Noise: Grinding or whining sounds often indicate insufficient lubrication inside the transaxle.
• Slipping Gears: If the vehicle unexpectedly slips out of gear or struggles to stay in gear, low or degraded fluid may be the cause.

Importance of Using the Correct Fluid Type

Using the wrong fluid can cause severe damage to transmission and differential components. Always use the fluid type specified by your manufacturer—this may be ATF, CVT fluid, or a specialized transaxle formula depending on the vehicle.

DIY vs. Professional Replacement

• DIY Replacement: Possible on some models with accessible drain and fill plugs. However, sealed transaxles or systems requiring fluid level checks at specific temperatures can be complex.
• Professional Replacement: Recommended for most vehicles, especially those without dipsticks or with electronic monitoring systems. A professional ensures the correct fluid level, temperature, and procedure.

Transaxle Fluid vs Transmission Fluid – What’s the Difference?

Although transaxle fluid and transmission fluid are often mentioned interchangeably, they have distinct functions and formulations depending on the type of drivetrain.

Functional Differences

• Transmission Fluid: Primarily designed for gear lubrication and hydraulic operation in standalone transmissions, often used in RWD vehicles.
• Transaxle Fluid: Lubricates both the transmission gears and the integrated differential, ensuring smooth power distribution to the wheels in FWD and AWD vehicles.

Viscosity, Additives, and Heat Resistance

• Viscosity: Transaxle fluid is often thicker to handle the combined load of transmission and differential components.
• Additives: Includes extra friction modifiers and anti-wear agents to protect gears and bearings.
• Heat Resistance: Formulated to withstand higher operating temperatures due to the combined transmission-differential function.

Which Vehicles Require Which Fluid

• RWD or Standalone Transmission Vehicles: Typically use standard transmission fluid.
• FWD and Many AWD Vehicles: Require transaxle fluid designed for their integrated unit.
• Manufacturer Specifications: Always consult your owner’s manual, as some modern vehicles use specialized ATF that serves both purposes.

Conclusion

Understanding the differences between transaxle fluid and transmission fluid is essential for proper vehicle maintenance. While both lubricate gears, transaxle fluid also protects the integrated differential in FWD and AWD vehicles, requiring unique formulations and attention to correct fluid levels.

Timely fluid checks and replacements help prevent hard shifting, gear slipping, and costly drivetrain damage. Always follow manufacturer guidelines for fluid type and service intervals to ensure smooth operation and long-term reliability.

Final Recommendation: Regularly inspect your transaxle fluid, use the correct type, and replace it at recommended intervals. Proper maintenance keeps your vehicle performing optimally and reduces the risk of expensive repairs.
